Water filtration designed for you
Water filtration systems - Which type?
Water filtration systems are designed for treating different sources and quality of input water. Waco systems, supplied by HIQ use three main types of filtration Ultra Fine (UF), Nano technology and Reverse Osmosis (RO).
Ultra Fine (UF) Water filtration
The UF filtration is used when the quality of water is already quite good. This is normally found when the water supplied to your property or location has already been filtered by the main water supplier or there is another system between the source of water and your supply. For example a condo building or office block may have a central reverse osmosis system. Generally Manila area has source water that is suitable for UF water filtration, but the water quality should still be checked beforehand. UF filters have membrane with pore sizes in the range of 0.03 to 0.05 micron typically remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules, bacteria except minerals.
Nano Technology Water Filtration
Nano Technology is a more recent water filtration development. Similar to UF but the Nano filter is equipped with a special kind of plain film having 95% pores regularly made on it. Its pore size of 0.01~0.03um can endure the water pressure of 20kg, blocking the in-flow of the various germs. One additional advantage of Nano over UF is that it can be effective at softening hard water. Nano is readily available through Waco Philippines.
Reverse Osmosis (RO) Water filtration
Reverse Osmosis (RO) water filtration uses a very fine membrane and normally requires a pump to push the water through the membrane. The systems also release waste water and the amount can be high depending on the quality of source water. An RO system is required when the source water is lower quality, or is deep well or similar. Systems can be very large and the technology also used in desalination plants, processing sea water. HIQ is located in Binan, where we we recommend RO filtration is necessary.
Water quality testing
A basic test for your quality of water supplied to your property is to make a measurement of the Total Dissolved Solids, known as the TDS. This is measured in parts per million (ppm). A TDS tester is required to do this test. Before installation of a WACO system we would request a water quality report or conduct a site visit to test the water. The guideline applied is if the TDS is 0-150 then use UF with or without softener, 151-190 use NANO technology and if the reading is above 191 use Reverse Osmosis
Residential Water Filtration
Under-sink HW NP 100M
Counter top HQ9 HWLP UV

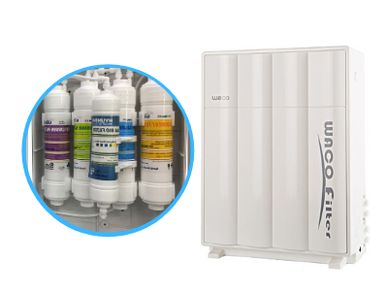

Under-sink HW NP 100M
Ideal for your home, the HW NP 100M Reverse Osmosis system, providing 150 gallons of purified water per day. Available with standard, alkaline or specialised filter configuration.
Under-sink HW NP 200
Counter top HQ9 HWLP UV
Under-sink HW NP 100M
Similar to the HW NP 100M but with standard filtration only, either UF or NANO type. Inlet water will need to be less than 190 ppm when TDS is tested.
Counter top HQ9 HWLP UV
Counter top HQ9 HWLP UV
Counter top HQ9 HWLP UV
The HW LP UV is designed for Residential or office use, using the HQ9 high flow capacity WACO filters. Ultra Violet filter for additional protection is included. Tempered glass front panel and LED display.
Under-sink VP-CU-200
WACO whole house system
Counter top HQ9 HWLP UV
Entry level home under-sink filtration system available with 4 or 5 filters, with standard UF, Nano filtration and with Alkaline if preferred.
Dispenser W2 160P
WACO whole house system
WACO whole house system
The W2 160P provides Hot and Cold water dispensing via its own water filtration system. This is a bottleless dispenser plumbed into your water supply. For RO technology see available units in office section.
WACO whole house system
WACO whole house system
WACO whole house system
WACO new whole house point of entry system the WHNS-01 NANO filtration system. For drinking, cleaning, washing, bathing and cooking requirements.
Office and business
HW 110
Infinite L20
HWJ-L110
The HW-110 is an ideal bottleless unit for the office or business. A versatile unit available with internal RO , Nano or UF System. Dimension: 310mm (W) x 315mm (D) x 1100mm (H), Capacity: 4L Cold, 2L Hot. Also available as table top.
HWJ-L110
Infinite L20
HWJ-L110
The HWJ-L110 is similar to the HW-110 but larger, with additional Swarovski design features. A welcome upgrade for lobby or front of house locations. Dimensions 310mm (W) x 375mm (D) x 1100mm (H), Capacity: Cold water 3L / Hot 2L / Reservoir 4.5L. Available as table top.
Infinite L20
Infinite L20
Infinite L20
Alternative design is the Infinite range. The L20 is available in UF or RO filtration. Dimensions 310(W) ×322(D) ×1025(H) Capacity: Cold 3L & Hot-2L. Available in table top.
W2- 160P
W2- 160P
Infinite L20
Entry level water dispenser with UF or Nano System. (Not RO) Dimensions
340 x 336 x 984 (H) Capacity: Cold 3L / Hot 2L.
W2- 170P
W2- 160P
W2- 170P
The W2-170P is an update and later model from the W2-160P. Available with UF or RO filtration. Dimensions 310(W) ×400(D) ×1025(H). Capacity: Cold 5L / Hot 2L.
EGHW-200
W2- 160P
W2- 170P
Our smallest table top dispenser with the powerful Waco filtration. Multi UF filtration with options for Eco Mac and Bio Aklaline. No power required to operate. Includes attractive and nifty battery powered blue light when dispensing.
Industry and construction
HQ9 High Flow Filters
HCRO 400/600/900 Gallons
HQ9 High Flow Filters
WACO HQ9 range of high capacity and quick change filters. A range of different filters, for single or multiple filter applications. Ideal for food service and food & beverage outlets.
Available Filters: 3 in 1 Eco Mac, Antiscalant, UF Membrane, RO Membrane without need for pump (300GPD) and other specialized filters.
HCRO 300 Gallons
HCRO 400/600/900 Gallons
HQ9 High Flow Filters
HCRO-300G with Standing Bracket and 11G tank providing a capacity of 1.1 ton of RO water filtration per day.
A Commercial 6-Stage RO System ideal for your business. This units is core to the HIQ Water station for construction workers, outdoor event, pop up water fountains.
HCRO 400/600/900 Gallons
HCRO 400/600/900 Gallons
HCRO 400/600/900 Gallons
HCRO-400G/600G/ 900G with Cabinet and 11G Tank range of RO water filtration systems providing capacity of 2.2 ton- 3 ton/day. Complete RO filtration system with automatic self flushing.
HIRO 5 - 20 Tons
Mineral Water Vending Machine
HCRO 400/600/900 Gallons
The HIRO range with Cabinet / PLC control providing between 5 and 20 tons of daily water filtration capacity. Dimensions (L×W×H): 1200mm × 790mm × 1470 mm.
Mineral Water Vending Machine
Mineral Water Vending Machine
Mineral Water Vending Machine
Mineral water vending system with various payment systems. Producing safe drinking water using advanced Waco RO system. All process is done automatically by PLC (Programmable Logic Controller) control. Clean and hygienic with dual UV sterilization system. Producing drinking water and selling in real time without need for storage. Compact design and easy Installation - Easy to move and install
HINRO 50-200 Tons
Mineral Water Vending Machine
Mineral Water Vending Machine
Example of large Water treatment systems up to 200 tons capacity. Suitable for projects, hotel, building and other high volume RO water treatments.
emergency Water Filtration
EMRO - 10R
EMRO - 20S 2
EMRO - 10R
WACO Emergency Portable Drinking water system EMRO - 10R, suitable for River or Lake water source. Strong yet easily transported, great for fixing on back of a pick up or similar. Capacity 125 Litres per hour (LPH) of drinking water produced. Dimension 730mm × 460mm × 380mm. Ideal for Disaster response organisations and first responders. Complete with Gasoline engine.
EMRO - 30E
EMRO - 20S 2
EMRO - 10R
Waco Emergency Portable Drinking water system EMRO - 30E Similar specification as the 10R, but instead of using Gasoline engine, it's driven by electric motor & pump. This model is ideal if used in location with available electrical supply of 220V. Capacity 125 Litres per hour (LPH) of drinking water produced from River or Lake source water. Dimension 730 mm × 460mm × 380 mm. 30kg. Possible to supply enough drinking water for 30~200 people.
EMRO - 20S 2
EMRO - 20S 2
EMRO - 20S 2
WACO Emergency Portable Drinking water system EMRO - 20s and 20S 2, with one or two RO membranes. Capacity 185 LPH of drinking water produced for River or Lake water source, or 90 LPH if the two membrane deployed for Sea Water treatment. Dimension 860mm × 450mm × 590mm. Complete with Gasoline engine. The Ultimate product for emergency or disaster recovery.
HPRO - 101
HPRO - 101
EMRO - 20S 2
Waco HPRO - 101 Portable Drinking water system. Flexible and easily transportable water filtration pack suitable for treating River or Lake water into 20 LPH of drinking water. Electric power operation by rechargeable battery or can be plugged into cigar lighter socket for continuous use, DC24V,7A, PP Hard case, dimensions 560mm × 350mm x 230mm, 15kgs.
HPRO - 301
HPRO - 101
HPRO - 301
Waco HPRO - 301 Portable Drinking water system. Dual drive system operating either by electric or person turning handle. Source water treated can be River or Lake water, producing 27 LPH with electric and 24 LPH non powered. Contained in PP Hard case with Ac Adapter & handle. Dimensions 560mm × 350mm × 230mm, 15kg.
HPRO - 201
HPRO - 101
HPRO - 301
Waco HPRO - 201 Portable Drinking water system. Treat River, Lake or underground water producing 30 LPH of drinking water by hand operation by handle. High specification of treatment, ideal for emergency, military and adventure. PP Hard case with handle 430mm x 380mm x 160mm. 8.3kgs
